80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Transparent LED Display Pixel pitch 3.91-7.82
Module size Customized Size available Application large shopping mall, theatres, chain stores,
Tube chip color Full Color,RGB Display function Video,Animation,Graphics,Animation/ graphics/ video,Video/Image
Usage Indoor,Outdoor Pixels 3.91-7.81mm
Brightness ≥5000nits Led chip SMD1921 (Anti-UV),Nationalstar
Life span 100000 Hours Cabinet size 500x1000mm or 1000x1000mm
Viewing angle 140 degree /140 degree Refresh rate 1920Hz,3840Hz
برجسته کردن

glass wall led display,clear led screen

,

clear led screen

پیام بگذارید
توضیحات محصول

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores



Curtain screens are ideal for window displays in retail stores, car showrooms and entertainment venues. They allow natural light to pass through which is perfect for retail applications.


LED Curtain and LED Mesh screens are available in various resolution levels to suit your required application.


LED curtain screens and LED mesh screens can come in rigid panels or flexible panels that can be rolled up. The benefits of the flexible panels are they can be curved into a perfect circle and allow for circular screens. The curtain screen that LED Media supply is rotatable which can be rotated from 15 degrees to 30 degrees. All our curtain and mesh screens come with SMD led chips and we supply indoor or outdoor solutions. The transparency of our curtain screens and mesh screens range from 10%-45%, which allows for natural light to come through your windows but doesn’t affect the picture quality.



These screens can be installed without complicated tools and you can install these screens by hanging them in a semi permanent style or in a fixed installation.





Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level



Features



Modular Design

Standard size can be used to create larger displays, using the right resolution for the job



Easy Setup and Installation

Modular panels can snap toghter easily by hand on support frames. Custom installatios also available.



Light Weight and Easy Transportation

14kg/sqm(including all structure and power supply). it's half of the weight of normal LED displays.



Easy to Maintance and Update

Long life expectancy as replacement LED strips are swapped in easily without having to replace the entire panel



Outdoor Advertising Media Window Led Wide



Applications
Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.

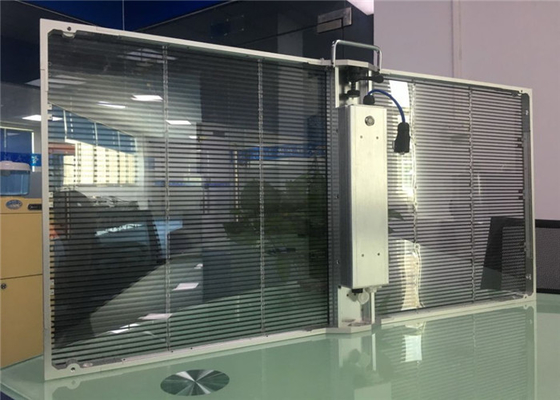

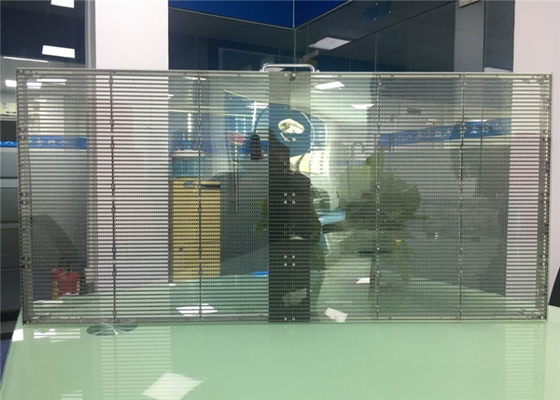

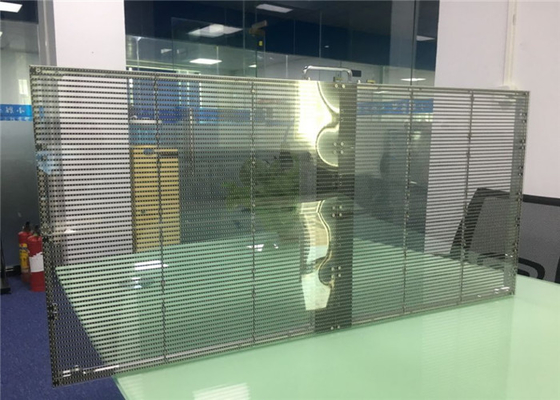

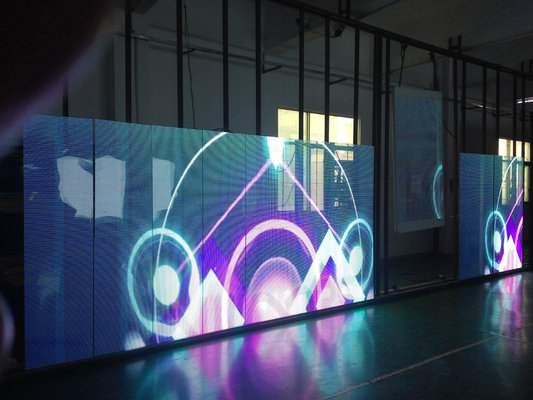

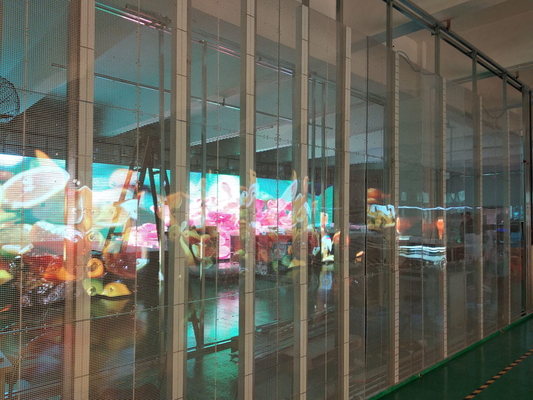

Detailed Pictures



80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 0

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 1

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 2

80% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 380% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 480% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 580% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 680% Transparency Led Mesh Screen , Transparent Led Curtain Display For Chain Stores 7
