Super Light Design LED screen outdoor advertising P8 Large Viewing Angle 960*960mm

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AE-P8OFRGB
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Outdoor LED Advertising Screen Pixel Pitch(mm) 8 mm
Pixel Density(pixels/㎡) 40000 LED Type SMD3535
Panel Material Die-casting Aluminum Module Size 320*160 mm
برجسته کردن

commercial advertising led display,led advertising panel

,

led advertising panel

پیام بگذارید
توضیحات محصول

Super Light Design LED screen outdoor advertising P8 Large Viewing Angle 960*960mm



Features
1. Super light design ensure the cabinet easy to be installed and disassembled
2. High brightness meet the needs of various application environments
3. Energy saveing design and good performance in color uniformity
4. Superb workmanship to ensure every processing details
5. Environmental raw material (LED chips, mask, glue, and steel cabinets)
6. Large viewing angle. Horizontal:140° , Vertical: 140° .

Applications

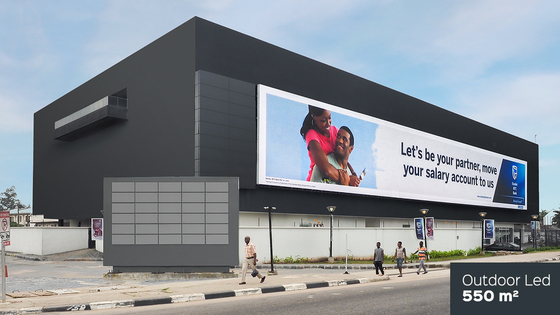

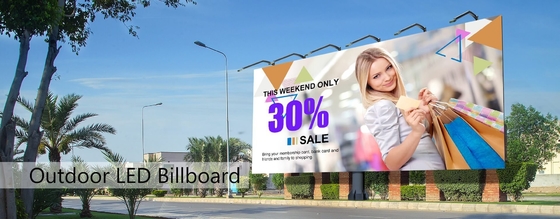

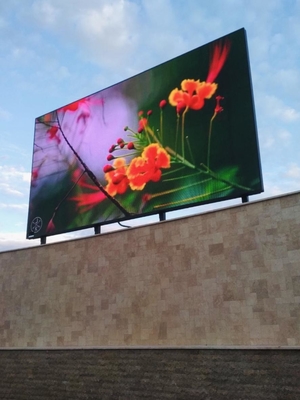

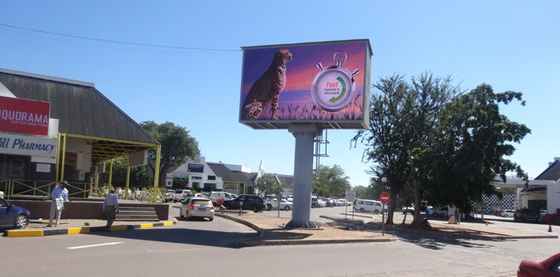

The indoor and outdoor LED display are widely used on shopping malls, conference rooms, information centers, control centers, stations, terminals, entertainment, offices and other indoor places, news, advertising, media, publishing and dissemination.


Parameters

Module Parameter


1
2 Model AE-P8OFRGB
3 Pixel Pitch 8 mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 40*20 pixels
7 Module Size 320*160 mm


Panel Parameter


8 Material magnesium alloy
9 Cabinet Resolution 120*120 pixels
10 Cabinet Size 960*960*75mm
11 Cabinet Weight 25Kg
12 IP Rating IP65


Display Parameter


13 Pixel Density 15625 pixel/㎡
14 Refresh Rate ≥ 1920Hz
15 Gray Scale 16 Bit
16 Brightness ≥ 7000 cd/㎡
17 Scan Mode 1/5
18 Frame Rate 50HZ~60HZ
19 Viewing Angle H:140°, V:140°
20 Control System Nova/Linsn
21 Operation System Windows/me/200NT/XP
22 Working-Temperature '-20℃~60℃
23 Working Humidity 10%~90% RH
24 Input Voltage AC 110~220 V (±5%)
25 Blind spot rate ≤0.01%
26 MTBF 35000 Hour
27 Lifespan 100000 Hour



Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.
