Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AE-P10OFRGB
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Stadium LED Display pixel pitch 10mm
pixel density 10000dots/m2 Brightness 7000 nits
Suggested Cabinet Size 960x960x120mm Application Large stadium, Waiting room, TV live broadcast
Screen dimension Customized Size Tube chip color Full Color
Usage Outdoor,Indoor Pixels 10mm
Display function Video,Animation,picture,text Warranty 3~5 Years
Life span 100000 hours Module size 320*160 mm
Led chip SMD3535 Product name rental Led Display,P10 Footaball Stadium Led Display,Full color led display
Refresh rate ≥1920 Hz Color 1R1G1B
Scan mode 1/8scan Cabinet size 960*960*128mm
برجسته کردن

led stadium advertising boards,stadium led panel

,

stadium led panel

پیام بگذارید
توضیحات محصول

Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display



Features of led module:

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4. Ultra high brightness,low attenuation,high reliability and weather ability.

5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.





The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.



Protection Rate IP65 and Module Style Design.

The special waterproof design of P10 SMD Outdoor LED Screen protects it from water and dust. When instalLED in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP65 ensures great quality outputs in every condition.



Well-known brand power supply , saving energy and high efficiency

All series outdoor Fixed adopt Meanwhile power supply, electro optic conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply electro optic conversion ratio is under 80%, and high heat dissipation, not stable, low cost.



Ultra low power consumption, the first option for saving energy

7500 nits brightness with 330W/sqm power consumption, 50% less than the traditional panels. Excellent display performance, the first option for millions of advertising operators.

High Brightness, Better Quality

Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the P6 SMD Outdoor LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.



Application:

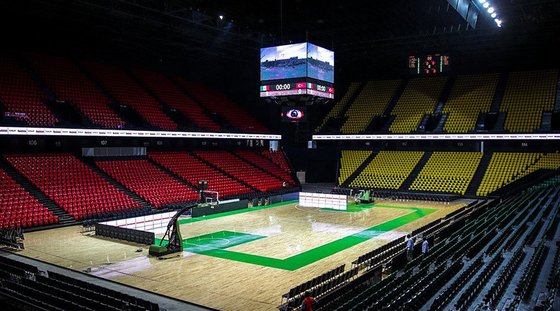

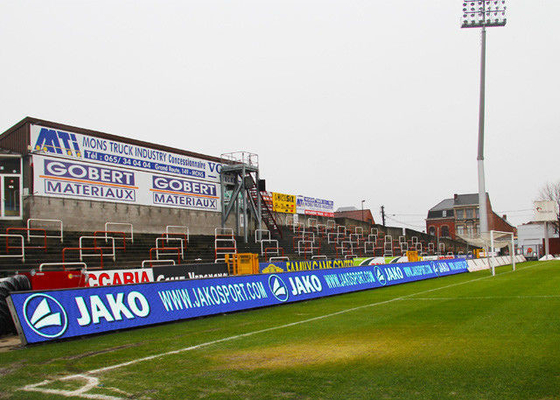

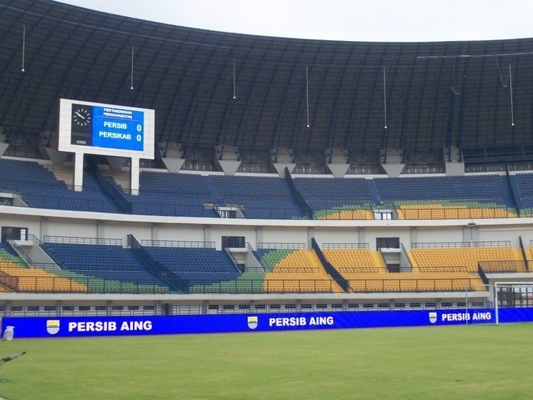

Stadium inside and outside such as football pitch, baseball, basketball etc.



Specifications:

Model No. P10
Pixel Pitch 10mm
Pixel Package SMD3535
LED Configuration 1R1G1B
Pixel Density 10000 Pixels/㎡
Module Size 320mm x 160mm
Module Resolution 32 x16 dots
Suggested Cabinet Size 960x 960x 120mm
Cabinet Resolution 96 x 96 dots
Cabinet Material Iron / Aluminum
Cabinet Weight < 45kg/㎡
Brightness 7000 nits
Color Temperature 3000-12000K
Viewing Angle H-120°/ V-120°
Driving Mode 1/4
Refresh Rate 960-2880Hz
Frame Frenquency 60Hz
Grey Level 4096-16384
Number of Color 1 Billion
Input Maximum Power 530 W/㎡
Input Voltage AC220±10%, AC110 ±10%
Input Frequency 50-60Hz
External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating IP65



Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display 0Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display 1Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display 2Large Viewing Angle P10mm Large Outdoor LED Display Screens Smooth Display anti-static electricity full color display 3
