Lightweight Fanless LED Curtain Screen All Weather IP67 Rated Water Resistant

قیمت negotiable

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Curtain LED display Application Indoor use, AV rental.
Drive mode static Pixel configuration 1R1G1B
LED type 3mm Oval LED Panel material Aluminum
برجسته کردن

led mesh screen,flexible led curtain display

,

flexible led curtain display

پیام بگذارید
توضیحات محصول

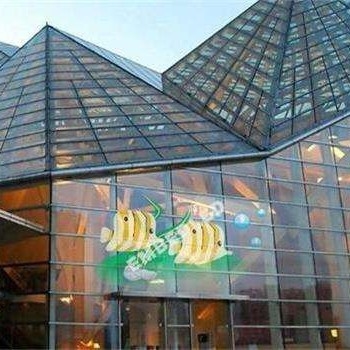

Lightweight Fanless LED Curtain Screen All Weather IP67 Rated Water Resistant



Product Features:



  1. Exceptionally Lightweight and Ultra-slim, with astonishing average weight at 10-20kg/sqm, uBar series are designed for ease of installation and maintenance, eliminating huge heavy load supporting structure reinforcement cost which is often associated with conventional LED video wall installation, besides apparent huge transportation and logistics benefits.With all the huge installation and maintenance benefits, uBar cost often means a fraction of conventional LED display when it comes to billboard applications.

  2. Amazing All-weather IP67 Rated & Fabulously Aerodynamic Design, Amazing front/rear IP67 rated, UV-resistant, rendering uBar a reliable solution for both indoor and outdoor environment.Fabulously aerodynamic wind-resistant design allows uBar withstand harsh storms and typhoons

  3. Groundbreaking Transparent Fanless Design, Groundbreaking cost-effective fanless self-cooling design renders uBar ultra-slim structure and amazing 20-80% transparency, which not only help to bring great installation & maintenance advantages, but also make transforming glass façades into vivid video walls possible. High transparency helps to maintain outdoor viewing from inside a venue while putting on a fabulous video show outside.

Pixel Pixel pitch 37.5mm
LED type 3mm Oval LED
Pixel configuration 1R1G1B
Wave length R: 625~630,G: 520~525,B: 465~470

Panel
Panel dimension 600mm (W) x 600mm(H) x 50mm(D)
Panel resolution 16 x 16
Panel material Aluminum
Panel weight 8.5 KGS

Screen
Resolution 710 Pixels/m2
Drive mode static
Brightness 1000 nits
Viewing angle Horizontal 120,Vertical 60??
Best viewing distance > 15m
Input signal DVI, S-VIDEO, COMPOSITE VIDEO, YUV, RGB
Refresh rate > 180Hz
Gray scale 16384 level per color
Computer system WINDOWS (WIN98, WINXP, WIN2000)
Screen flatness < 1mm
Communication distance 100m with net cable
Input voltage 110V-240V, 50Hz/60Hz
Power consumption average 60W/panel
Power consumption maximum 100W/panel
Working temperature -20 C to +50 C
Humidity(RH) 10% to 95%
Malfunction dot rate < 1/10, 000
Lifespan (50% brightness) 100, 000 Hours
