7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AE-P8
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Outdoor LED Advertising Screen Pixel Pitch(mm) 8 mm
Pixel Density(pixels/㎡) 15625 pixel/㎡ Pixel Configuration 1R1G1B
Viewing Angle(deg.) H:140°, V:140° Application Commercial advertising, Night club, Mobile media,
Usage Outdoor,subway station,highway station advertising,train station Screen dimension Customized Size,960*960
Display function Video,animation,graphics Brightness 6500cd/sqm
Life span 100000hours Color RGB,Full-color,16.7M,1R1G1B
Module size 320x160mm Cabinet size 960*960*100mm
برجسته کردن

7000 Nits Outdoor LED Advertising Screen,P10 Outdoor LED Advertising Screen,7000 Nits LED Advertising Panel

,

P10 Outdoor LED Advertising Screen

,

7000 Nits LED Advertising Panel

پیام بگذارید
توضیحات محصول

7000 Nits Outdoor LED Advertising Screen



P8 outdoor led advertising signs For Bank / Hospital high brightness 7000 nits

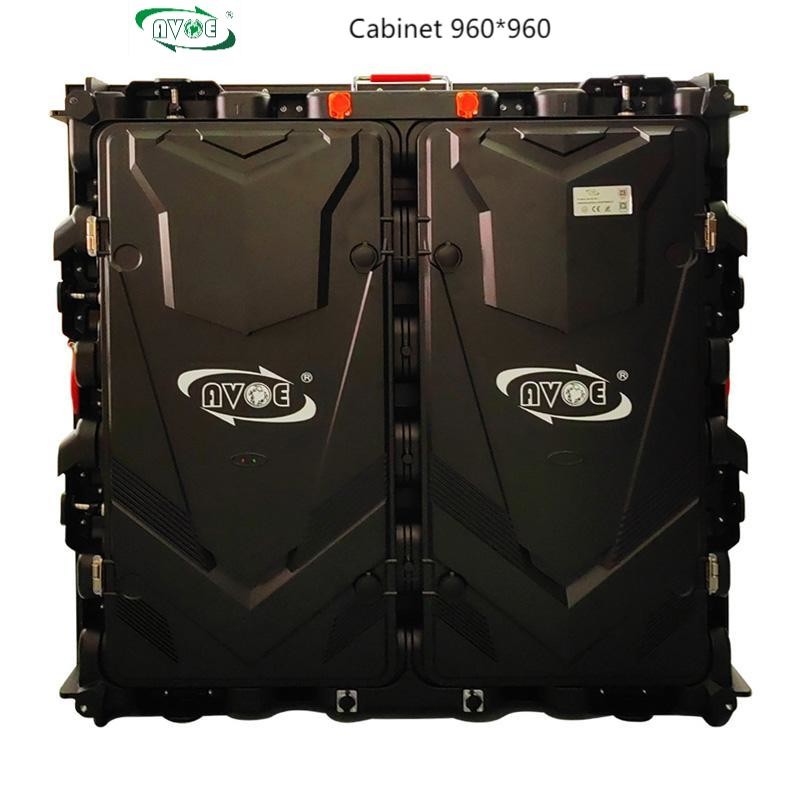

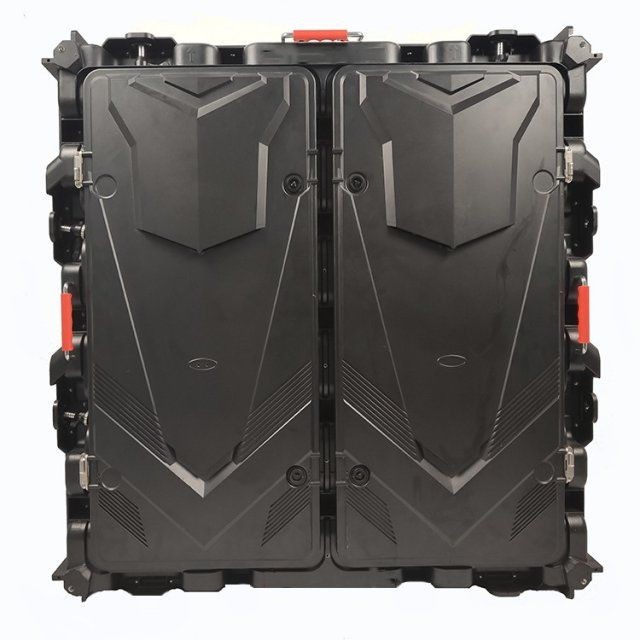

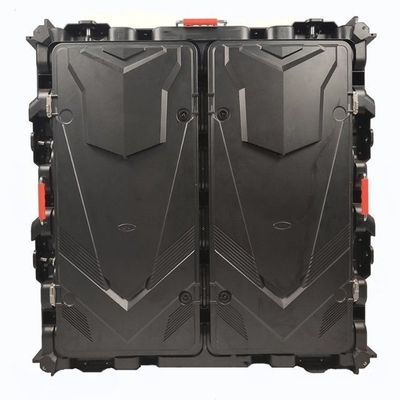

7000 Nits P6 P8 P10 Outdoor LED Advertising Screen Magnesium Alloy Cabinet 960*960mm



Features:



1. Outdoor display: IP65 waterproof grade and certification through SGS



2. Complete series products, customized for your different need.



3. Strong cabinet with reinforcing rib, tensile and quakeproof, with dissipation holes, lifespan more than 10 years.



4. Support dot by dot correction, to make sure the consistency of color and brightness for one screen.



5. Using power saving IC driver and special design PCB ,lower current power supply to save energy more than 30% ;



Aplication:

Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc.





Specifications:

1 Outdoor Advertising LED Display
2 Model No. AE-P8
3 Pixel Pitch 8mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 40*20 pixels
7 Module Size 320*160 mm
8 Pixel Density 15625 pixel/㎡
9 Refresh Rate ≥ 1920Hz
10 Gray Scale 16 Bit
11 Brightness ≥ 6000-7000 cd/㎡
12 Scan Mode 1/5
13 Frame Rate 50HZ~60HZ
14 Viewing Angle H:140°, V:140°
15 Material Iron/Aluminum
16 Cabinet Resolution 120*120 pixels
17 Cabinet Size 960*960*120mm
18 Cabinet Weight 26 Kgs/m2
19 IP Rating Front IP65, Rear IP54
20 Max.Power Consumption 780W/Panel
21 Avg.Power Consumption 300W/Panel
22 Control System Nova/Linsn
23 Operation System Windows/me/200NT/XP
24 Working-Temperature -20℃~60℃
25 Working Humidity 10%~90% RH
26 Input Voltage AC 110~220 V (±5%)
27 Blind spot rate ≤0.01%
28 MTBF 35000 Hour
29 Lifespan 100000 Hour

7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 0
7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 1
7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 27000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 37000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 4
7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG 5
