P10 SMD3535 8000nits Outdoor LED Advertising Screen IP54 AC110V

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AE-P10OFRGB
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Outdoor LED Advertising Screen Pixel Pitch(mm) 10mm
Pixel Density(pixels/㎡) 10000 pixel/㎡ Module Resolution 32*16 pixels
Viewing Angle(deg.) H:140°, V:140° usage commercial street,shopping mall,train station,
Usage Outdoor,subway station,highway station advertising,train station Pixels 10mm
Screen dimension Customized Size,960*960 Tube chip color Full Color
Display function Video,animation,graphics Brightness 6500cd/sqm
Warranty 5 years Application Outdoor Advertising Led,Advertising,Outdoor,HOTEL,Advertising/stage rental/Commercial event
Life span 100000 hours Color RGB,Full-color,16.7M,1R1G1B
Module size 320x160mm Product name led display screen,p10 outdoor led display
Led chip Nationstar LED گواهی CE,UL,CCC,ROHS,GS
Pixel density 10000dots/m2 Cabinet size 960*960*128mm
Input voltage AC110V - AC240V
برجسته کردن

SMD3535 Outdoor LED Advertising Screen,8000nits Outdoor LED Advertising Screen,IP54 Led Outdoor Advertising Board

,

8000nits Outdoor LED Advertising Screen

,

IP54 Led Outdoor Advertising Board

پیام بگذارید
توضیحات محصول

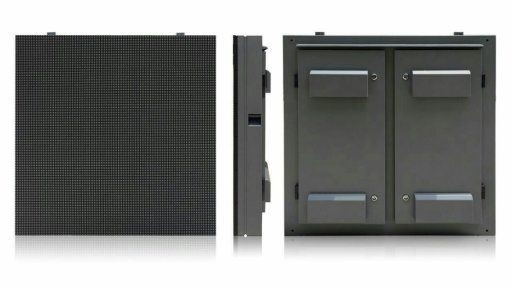

P10 LED commercial advertising display screen SMD3535 8000nits


Description:

(1) Use high quality LED chip and driving chip(), very good quality.
(2) Long life span (100,000 hours).
(3) High brightness, can be use under strong sun shine environment.
(4) Easy maintain.
(5) Working under the temperature -20C to +45C
(6) Low pixel out of control rate, <0.00001
(7) Ingress protection: front IP65, rear IP54.



Applications:

Three in One SMD indoor and outdoor Full Color Display has been specially designed for applications in public information systems, Adverting, Media and Entertainment.
Airports, Border ports, Seaports Railway stations, subways, bus terminals, coach stations
Schools, banks, stock exchanges Stage setting, television studio Hotel lobbies, casinos, disco, bar and so on ....


Parameters
1 Outdoor Technical Parameters
2 Model AE-P10OFRGB
3 Pixel Pitch 10mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 32*16pixels
7 Module Size 320*160 mm
8 Pixel Density 10000 pixel/㎡
9 Refresh Rate ≥ 1920Hz
10 Gray Scale 16 Bit
11 Brightness ≥ 6000 cd/㎡
12 Scan Mode 1/4
13 Frame Rate 50HZ~60HZ
14 Viewing Angle H:140°, V:140°
15 Material Iron/Aluminum
16 Cabinet Resolution 96*96 pixels
17 Cabinet Size 960*960*135mm
18 Cabinet Weight 40 Kg
19 IP Rating Front IP65, Rear IP54
20 Max.Power Consumption 600W/Panel
21 Avg.Power Consumption 200W/Panel
22 Control System Nova/Linsn/Dbstar
23 Operation System Windows/me/200NT/XP
24 Working-Temperature '-20℃~60℃
25 Working Humidity 10%~90% RH
26 Input Voltage AC 110~220 V (±5%)
27 Blind spot rate ≤0.01%
28 MTBF 35000 Hour
29 Lifespan 100000 Hour
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.



Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
