P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet

Place of Origin Shen zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AE-P4OFRGB
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case.
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Outdoor Fixed LED Display board Resolution/mm 4mm
Pixel density/pixels/m² 40000dot/m² Brightness( nits /m² ) 5500nits
Refresh rate ≥1920Hz IP rating IP65/IP54
Cabinet size 960*960mm Module size 320*160mm
برجسته کردن

5500nits Outdoor LED Display Billboard,SMD1921 Outdoor LED Display Billboard,Alloy Cabinet Outdoor Led Video Display

,

SMD1921 Outdoor LED Display Billboard

,

Alloy Cabinet Outdoor Led Video Display

پیام بگذارید
توضیحات محصول

P4 outdoor LED display billboard 5500nits brightness 1920Hz 5 years warranty aluminum alloy cabinet


Features

1. Waterproof, and great heat dissipation.

2. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

3. Big viewing angle to 120 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.

4. To pictures and character, have clear, exquisite and real display effect.

5. High intensity and can be adjusted, so can meet the request of the customers according the application environment.

6. Clear Vivid Image Quality: even in direct , full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment



Product Specification:





Specification of P4 Outdoor Fixed LED Display
Module
Dimention (w*h) 320mmx160mm Resolution (w x h) 80x40
Pixel pitch 4mm Pixel Density 62500 dots/㎡
Pixel Configration RGB 3-in-1 LEDs Type SMD1921 Nationastar
Cabinet
Dimensions(w* h)(mm) 960*960mm Module Quantity(PCS) 18
Physical Resolution (w x h) 240*240 Physical Pixels (total) 57600
Weight/Cabinet (kg) 28kg/45kg Material Aluminum alloy/iron
Average Power/㎡(watts) 300W Max Power/㎡(watts) 950W
Parameter Value
Brightness ≥ 5500 cd/㎡
Viewing Angle Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg.
Best Viewing Distance 5-200meters
Brightness Control 256 level
Gray scale 14bits
Refresh frequency ≥ 1920Hz
Driving mode 1/10 scan constant current driving
Input power frequency 50/60 Hertz
Input Voltage AC/220 ~ 240 Volt
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP65/IP54
Operating temperature ﹣20 ~﹢50 ℃
Operating humidity 10% ~ 90%
Control distance CAT6 cable:<100 m; Single mode fiber:<10 km
Signal input format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system Windows (2007/XP/Vista/7/8/10)




What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.





Application:

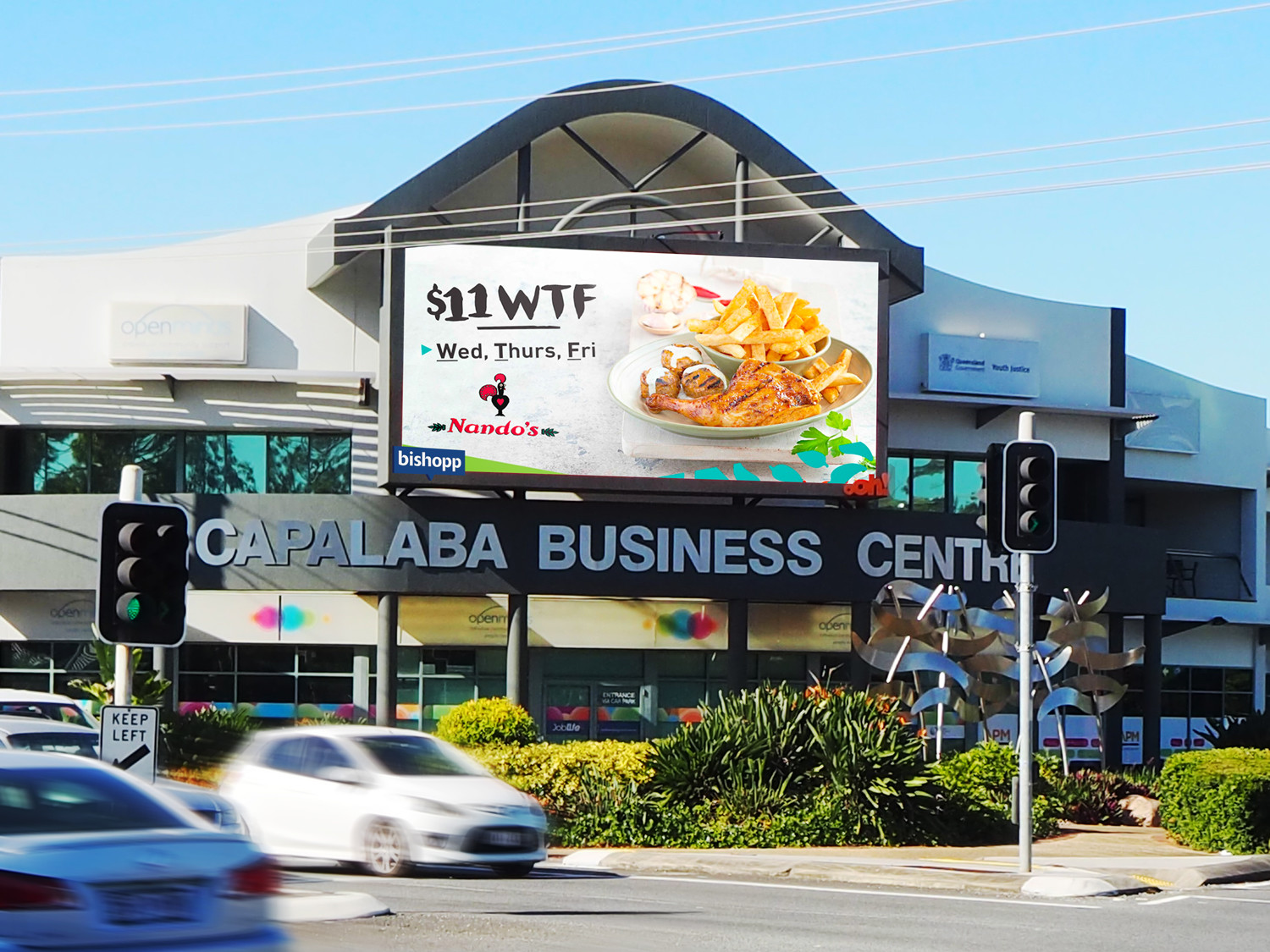

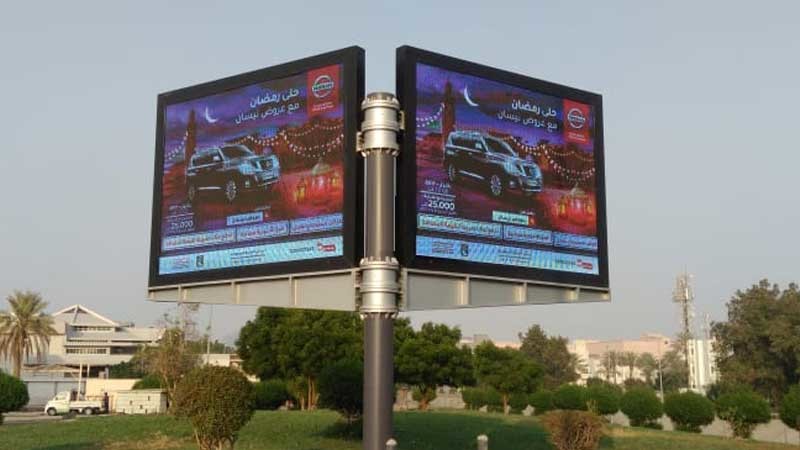

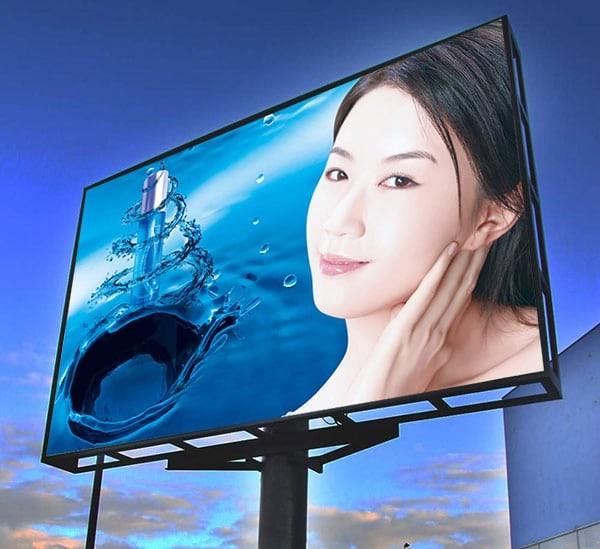

Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other outdoor rental events.



P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 0



P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 1P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 2


P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 3P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 4
Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.

Installation Procedure
P4 5500nits Outdoor LED Display Billboard SMD1921 Aluminum Alloy Cabinet 5
