P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm

Place of Origin Shen Zhen China
نام تجاری AVOE LED
گواهی CE RoHS
Model Number AV-P2.6
Minimum Order Quantity 5sqm
قیمت negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
Name Stage Background Led Display Panel Pitch 3.91mm
Cabinet Material die casting aluminum Tube chip color Full Color
Screen dimension 500*500mm/500x1000mm Brightness 1000nits
Warranty 5 Years Life span 100000hours
Module size 250*250mm Product name Led Video Display Panel,High brightness background video screen indoor rental P3 led display,P3.91 Rental LED Display
برجسته کردن

Stage Outdoor Rental LED Display,3.91mm Outdoor Rental LED Display,500*500mm Rental LED Panel

,

3.91mm Outdoor Rental LED Display

,

500*500mm Rental LED Panel

پیام بگذارید
توضیحات محصول

Type A Pro P3.91 Stage rental LED Panel Curve Cabinet 500x1000mm and 500*500mm



Feature Of Stage Rental LED Screen



The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.



Seamless connection.



Special design for the mask to realize higher contrast and larger viewing angle.



Signal backup and power backup.



Brightness and chromaticity calibration.



Mixed use of cabinets from different batches



it delivers an image which is super subtle and without getting tired after a longtime watching



Super High Refresh rate, High frame frequency, No Ghosting &Twisting or smear.



Front Serviceable module allows easy. maintenance, saving time & space.



16 bit grey grade processing, the color transition will be more natural Ultra high definition 2K 4K LED display.



High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.



Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.



High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.



Good heat dissipation with fans and using meanwell power supply, long lifespan.



You can adjust the resolution by change modules directly, this can save your cost and labor.



250x250mm module, compatible with various pitches such as P2.6/P2.9/P3.91/P4.81, high selectivity



High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble



Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.



High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness



1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios



Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 16bit gray scale, Real color reproduction,

high quality display





Application:


Commercial advertising, mobile media, night club, entertainment events, business establishments, stock exchange centers, bus station, schools,



telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;





Specification



Model I-P2.6 I- FP2.84 I-P2.97 I-P3.91 O-P3.47 O-P3.91 O-P4.81
Pixel Pitch (mm) 2.6 2.84 2.97 3.91 3.47 3.91 4.81
Led Configuration SMD1515 SMD1515 SMD2121 SMD2121 SMD1921 SMD1921 SMD1921
Pixel Density(dot/㎡) 147456 123904 112896 65536 82944 65536 43264
Reasolution(dot) 96*96 88*88dot 84*84 64*64 72*72 64*64dot 52*52dot
Module Size (mm) 250*250 250*250 250*250 250*250 250*250 250*250 250*250
Cabinet Size (mm) 500*500*88 500*500*88 500*500*88 500*500*88 500*500*88 500*500*88 500*500*88
Cabinet Weight 7.2kg 7.2kg 7.2kg 7.2kg 7.5kg/ 7.5kg 7.5kg
IP Rating IP30 IP30 IP30 IP30 IP65 IP65 IP65
Scanning Mode 24S 24S 21S 16S 18S 16S 13S
Brightness CD/m2 800 800 800 800 5000 4500 4500
Viewing Angle 140° 140° 140° 140° 140° 140° 140°
View Distance >3m >3m >3m >4m >4m >4m >5m
Gray 14bit 14bit 14bit 14bit 14bit 14bit 14bit
Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Max/Ave Consumption(W/㎡) 550/200 460/160 480/170 400/150 600/200 600/200 580/180
Refresh (Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Gamma Coefficient -5.0~ + 5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0
Environment INDOOR INDOOR INDOOR INDOOR OUTDOOR OUTDOOR OUTDOOR
Brightness Ajustment 0-100 levels adjustable
Control System Synchronous display with control PC by DVI
Video Format Composite, S-Vido,Component, VGA. DVI, HDMI, HD_SDI
Power AC100~240 50/60HZ
Working Temperature -20°C~+50°C
Working Humidity 10~95% RH
Life Span 50,000hours

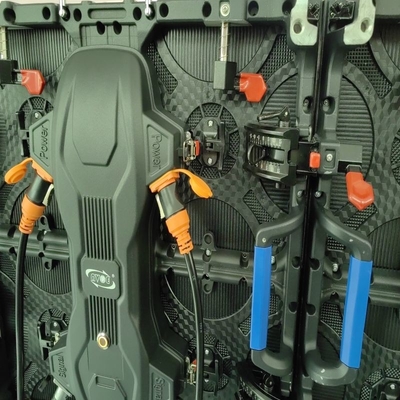

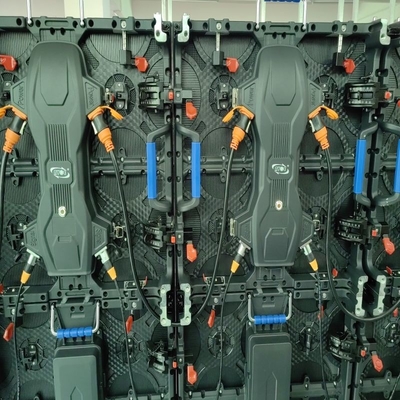

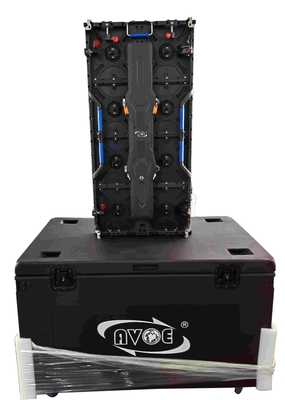

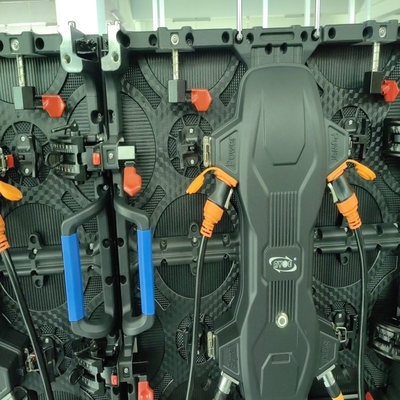

P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 0

P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 1

P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 2

P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 3

P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 4





P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 5


P3.91 Stage Outdoor Rental LED Display Curve Cabinet 500x1000mm 500*500mm 6
